Audi RS6 (4F) 5.0T 4F5910552 0080 - ECU Stage 1

Make Audi
Model RS6 (4F)
Engine 5.0T (580)
ECU Supplier Bosch
ECU Model MED9.1.1
Mfgr. ID 4F5910552 0080
Supplier ID 398567
Misc. ID 55BC6A2JG_48C1_073
Project Type ECU Stage 1
Description

+164 PS, +344 Nm

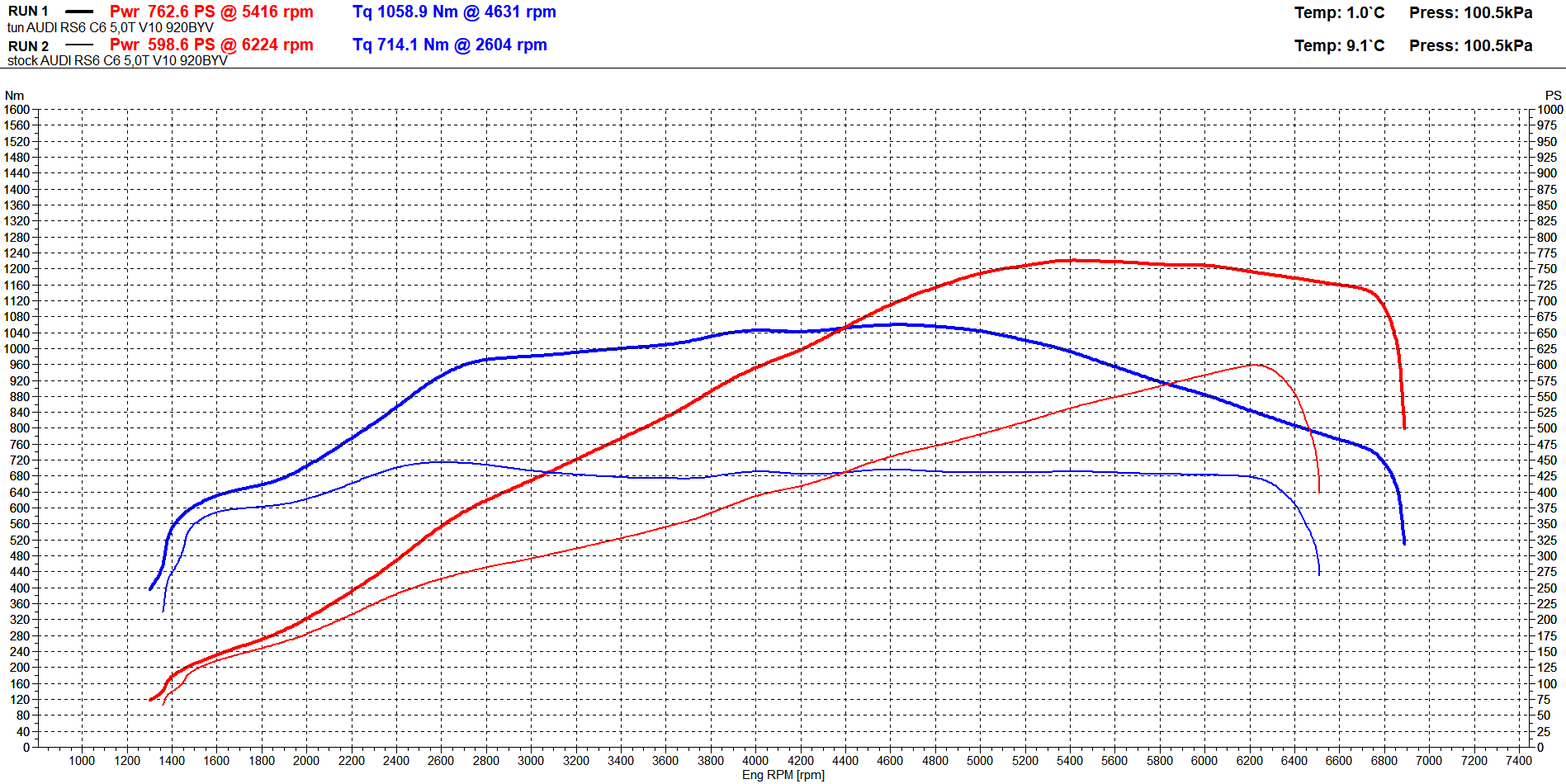

The dyno graph is from a car with a milltek catback exhaust, expect 720 PS on a completely stock car.

Before tuning any of these cars, they have a set of problems that must be checked:

  1. The stock intercoolers develop hundreds of pinhole sized holes - essentially like swiss cheese. Pressure test the intake (you can do that from the bottom of the car, take the intercooler hoses off, blank one, pressure test from the other, it should hold pressure). If the intercoolers don't hold pressure, replace the intercoolers.
  2. The wastegate actuators on the turbos become loose over time and the car barely even makes stock boost. Log the wastegate duty cycle on the car, if it is 90% or over at high RPM on the stock tune, then the actuators are damaged. In this case there is no shortcut - the turbochargers must be renewed.

SAI, CAT and Rear O2 diagnosis is disabled in this tune. 98 RON.

TCU tune is required, see here: Audi_RS6_4F_5.0T_4F5910156P_0020_ZC1C08_DI06

Images
Original Files
(sign in to download)
4F5910552_0080_Original.zip
Modified Files
4F5910552_0080_Stage_1.zip
Credits 25
