Audi SQ8 (4M) 4.0d 4M8907409B 0006 - ECU Stage 1

Make Audi
Model SQ8 (4M)
Engine 4.0d (435)
ECU Supplier Bosch
ECU Model MD1CP014
Mfgr. ID 4M8907409B 0006
Supplier ID 051476
Misc. ID C1508DWA5
Project Type ECU Stage 1
Description

Tuning file: +92 PS, +172 Nm, VMAX increased

Gearbox tuning recommended, see suggested files here.

NB!
This engine is very sensitive to DPF filling and DPF often does not get regenerated even if it is quite full. If the car is down on power stock and tuned, and especially if there is a very large dip during turbo switchover, then most likely the DPF needs regeneration (in some cases even replacement). Log the DPF backpressure and regenerate the DPF if necessary. The DPF pressure at 4800 RPM with tuned file should be <700 mbar.

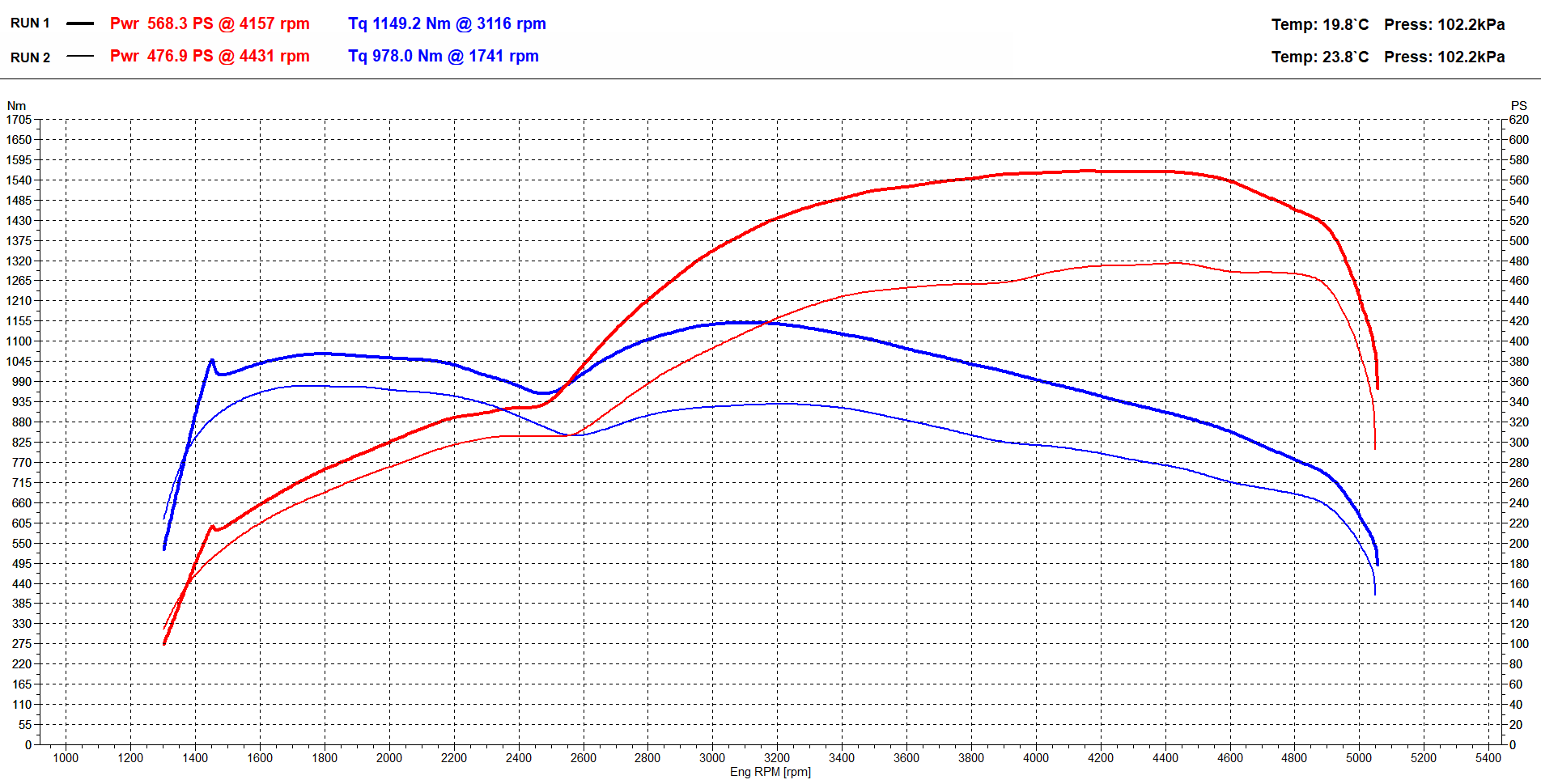

See the provided log for expected good values to make target power.

Images
Original Files
(sign in to download)
4M8907409B_0006_051476_Original.zip
Modified Files
Log00010_20230801_1237.csv
SQ7_advanced.logprof
SQ7_basic.logprof
4M8907409B_0006_051476_Stage_1.zip
Credits 30
