VW Golf R (5G) 2.0T 8V0906259N 0001 - ECU Stage 1

Make VW
Model Golf R (5G)
Engine 2.0T (300)
ECU Supplier Continental
ECU Model SIMOS18.10
Mfgr. ID 8V0906259N 0001
Supplier ID SCG00A1000000
Misc. ID SCGA10
Project Type ECU Stage 1
Description

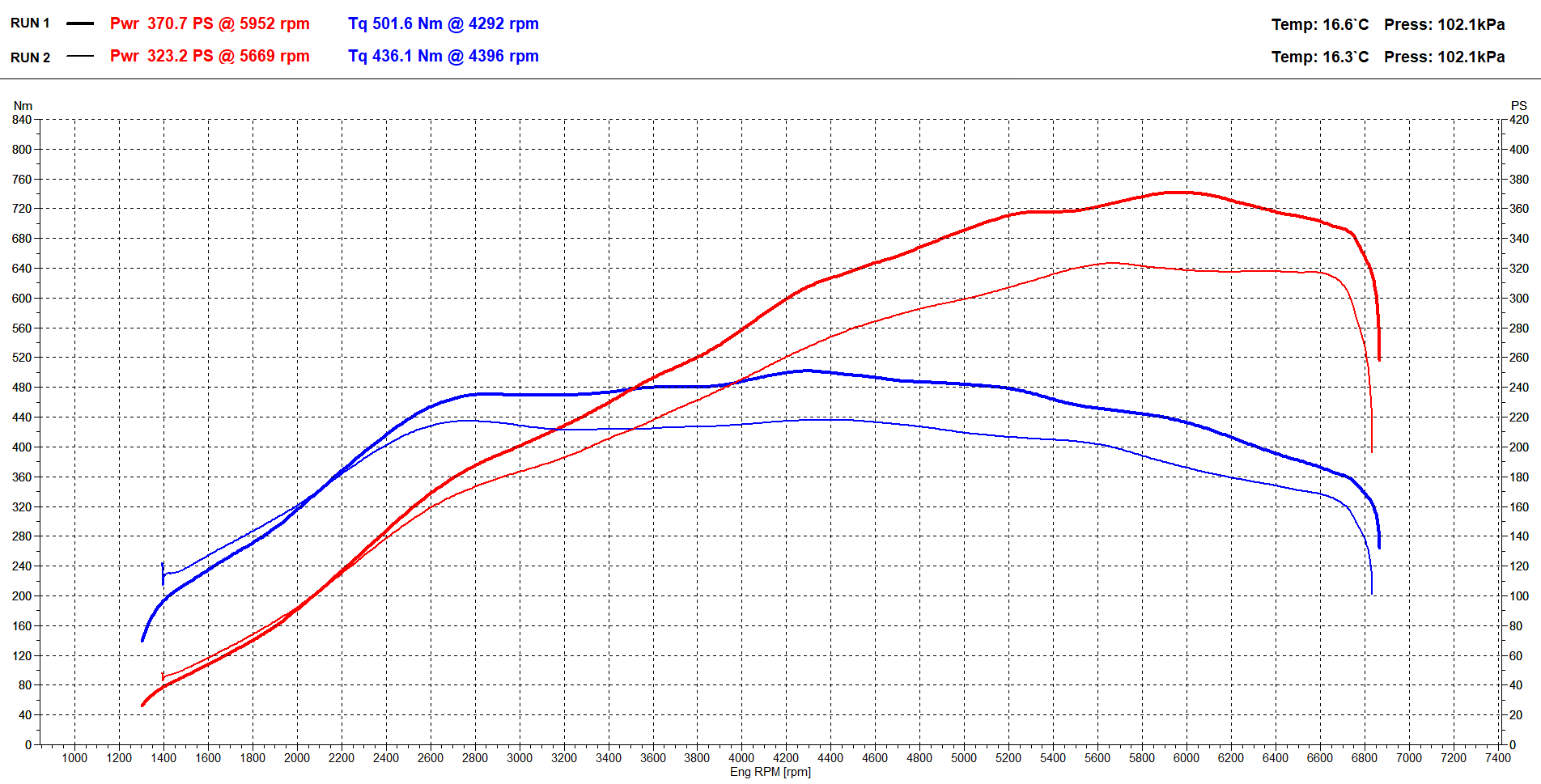

Tuned file: +47 PS, +65Nm, VMAX increased

NB!
1. Requires DSG remap, at the very least the torque limiter must be increased. Please have a look at these projects.
2. These cars can blow up the turbo if there are boost leaks or other issues, due to a combination of the IS38 being fairly weak and the ewg being able to overspin the turbo. Log the actuator position (POSN_BPA[0] in advanced or actuator actual position in basic) and make sure it is above 20% at 6500 RPM in 3rd and higher gears.
3. There seem to be slight differences in engines - there are some engines that like to have 3 degrees more timing than others. I have not found any pattern. Adjust ip_iga_bas_cmb_mod_cor maps to correct the timing based on knock retard.

Images
Original Files
(sign in to download)
8V0906259N_0001_SCG00A1000000_Original.zip
Modified Files
8V0906259N_0001_SCG00A1000000_Stage_1.zip
Credits 25
